DIY Loadcell Sim Racing Pedals - 3D models
Throttle - brake and clutch
€15,99
Skip to product information
DIY Loadcell Sim Racing Pedals - 3D models
€15,99
You'll get the files via email within 5 minutes from placing your order.
MAIN FEATURES
-

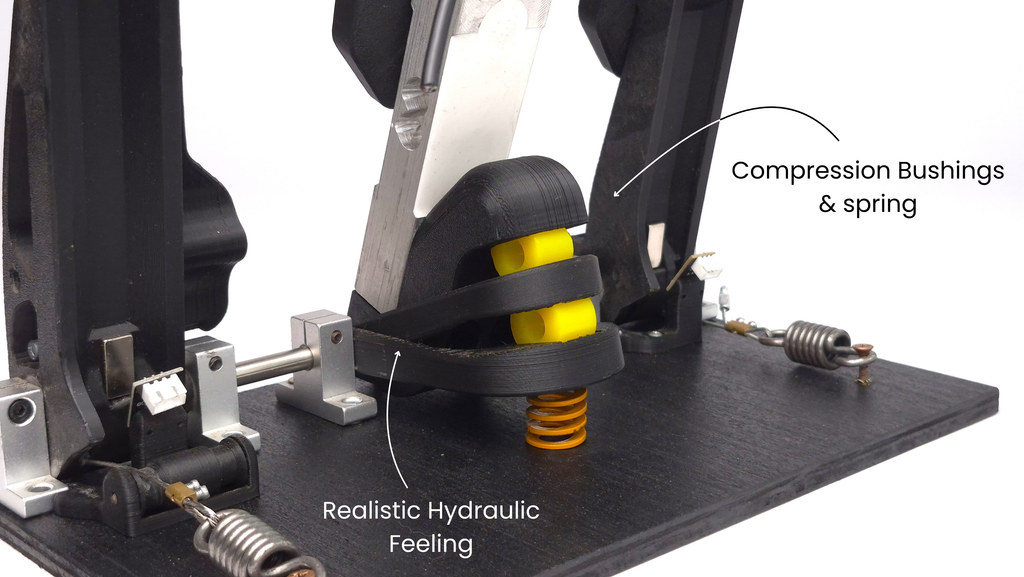

Extremely realistic feeling
-

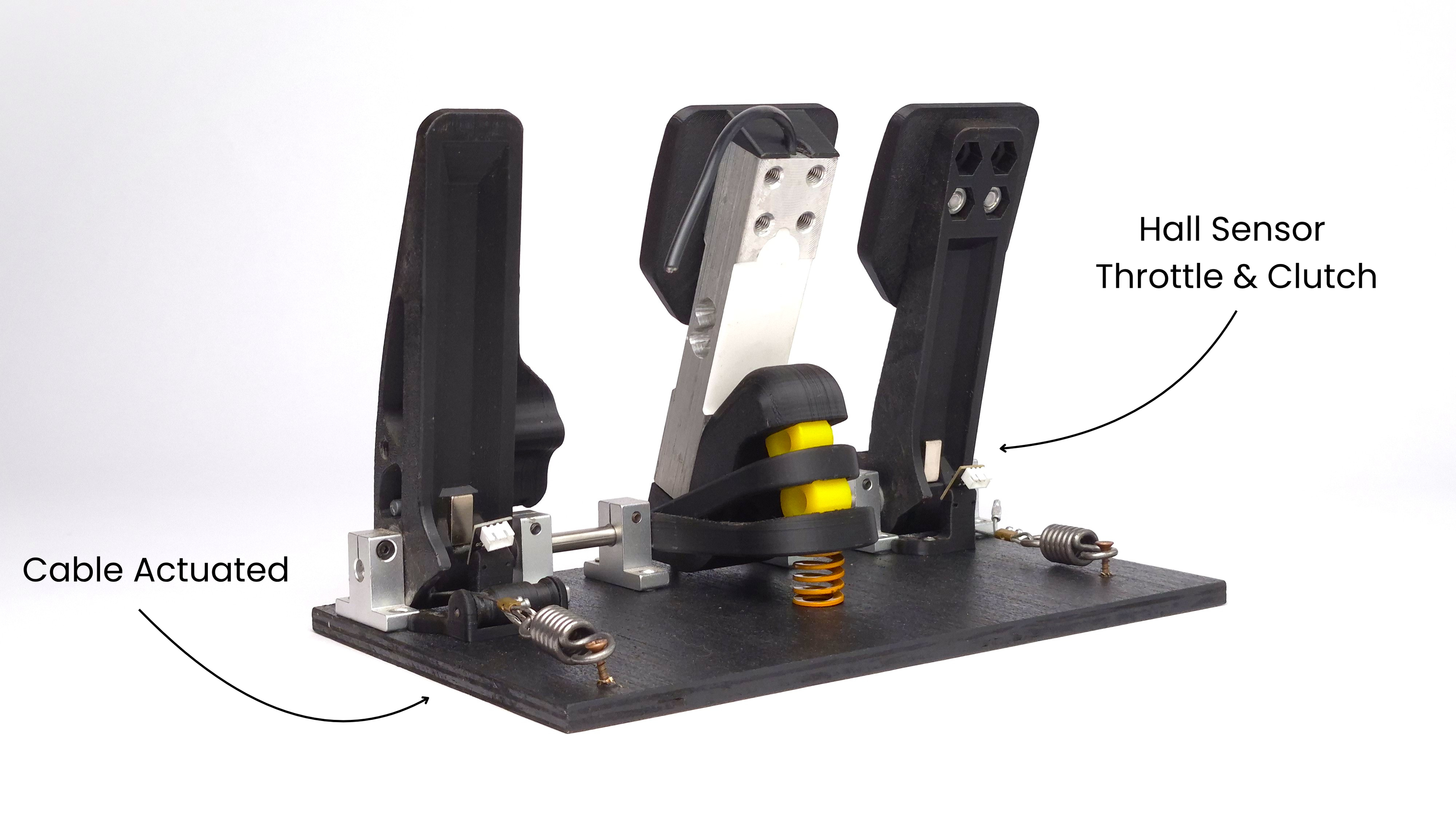

Hall sensor throttle and clutch
-

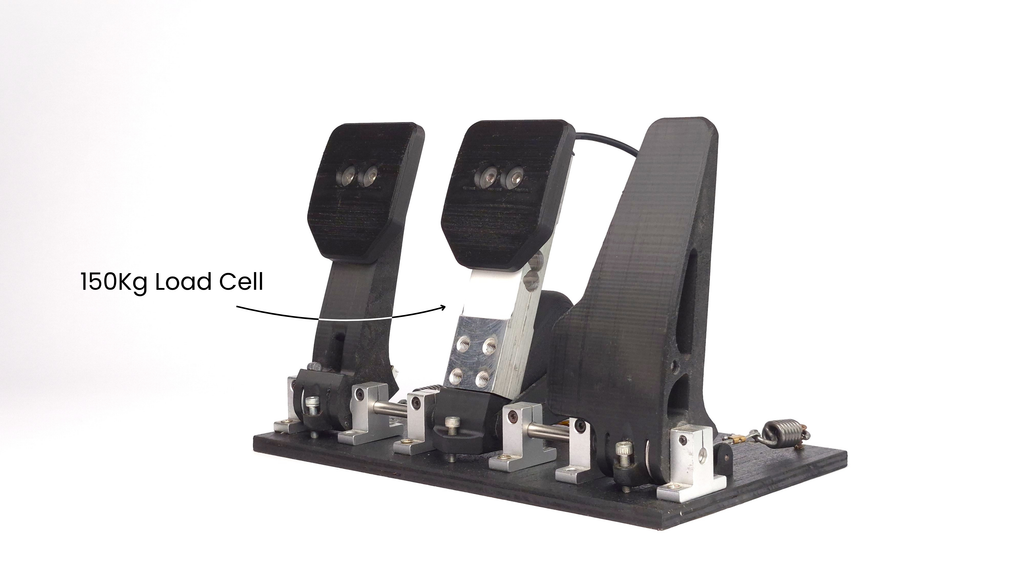

Loadcell brake pedal
-
Bespoke brake linkage with simpler construction
-
Total price between 40€ and 60€
WHAT YOU'LL GET WITH THE PURCHASE
-
.3mf files for all the needed components (clutch is included depending on the option)
-
Updated parts list with everything needed (also available HERE)
-
Circuit diagram
-
PDF with some useful building tips and other handy information
-
Arduino code that needs to be uploaded on the Arduino Leonardo to make everything work
3D PRINTING SETTINGS
| Material |
PLA+ or stronger |
| Walls | 4 |
| Infill | 20% |
For the main brake leverage you'll want to use 70/100% infill and 8/10 walls
WATCH THE VIDEO TO KNOW MORE
You may also like
M
The project in general is incredible and fulfills what it promises, some things that broke during use need to be polished, As upper and lower arm of the brake, maybe the vertical orientation of printing solves, broke well on the link that goes on the 8mm linear rail.
Another detail is about the roller that goes to the Accelerator, when using, it simply opened between the layers, the steel cable ended up on the nail, maybe bearings at the ends and another linear axis or an aluminum part solves this issue.
The supports that are suggested to hold the top of the M8 screw that hold the springs, are simply disposable, I used and broke the 2, I managed to get around with pieces of the m8 threaded bar, 1 nut + washer underneath, another on top, then the spring and another nut + m8 washer to keep the spring in place, worked perfectly
Congratulations on the project, may more and more improvements come to it, it's very good!
J
Very nice set of pedals. The brake felt a bit stiff at first but I asked the creator for the step file (to modify it a little bit) and he sent it to me!
B
Fun project to built, with good support if you get stuck.
E
Good design and excellent support.
A
pretty good
